Description of Final Project

the marking will be an onging process

create a project calendar with important dates

Your final project counts for 260 points (21% of your grade in this course). I would encourage you to attempt to treat the project like a "real world" situation involving databases.

Marks will be allocated for separate parts:

logfile is needed-- as Jan 9,2001

a detailed log of everyday in the project should be kept

you can use Yahoo calendar and share it with me( I should be able to access it any day that I want)

with the following headings- month day "important dates" detailed description with minutes

send account and details that are needed

document 1-- project specifications--.here the important decision of what to do--due Jan 12-- 20 marks

In the project specifications you will need to include:

Purpose - What your program will do, what need it fulfills, who the audience is.

Requirements - Describe in detail the minimum set of required features, functionality, capabilities that your program should perform by the submission date. In other words, if you are creating a major program with many features, what features will be functional when you turn in the project.

Submit project specifications for instructor approval.

document 2

Feasibility Report--DUE Jan 12--15 MARKS

It must be a word document with a chart or an Ms Project or spreadsheet file send as an attachment.

The "Feasibility Report" is a document which often is the first major piece that must be produced for the users. It is what the title suggests, a document that outlines the feasibility of the project for the users. The most important thing to remember about this document is that it is the basis of the user's decision to go ahead with the project . If you do not have a real user, then assume that you do or that you want to sell the product to some user. There must be some "USER" here.

The Feasibility Report is challenging (difficult in plain language) to write because you have to have enough information about what the user requires, preliminary estimates of costs, preliminary projections of development schedules and the like before you have done the complete study. In one sense it is an impossible task but it still must be done in order to secure the project. Keep in mind that users have the following three major considerations when they are making the decision to go ahead with a project or not:

WILL THIS COMPUTER PROJECT SOLVE MY PROBLEMS? what does it accomplish ? for whom?

WHAT WILL THE PROJECT COST?---in your case can you do>

HOW LONG WILL IT TAKE AND HOW WILL IT BE IMPLEMENTED? how will you do it?

Title page

Project name, report title, author(s), date

Table of Contents

A list of report sections with page numbers

Logical Model

-Break it down in major parts

-Describe options considered for things like the following (assess feasibility of each possibility as it is described):

Range of functions to be implemented (list each subset considered)
Style of user interface, online help, error reporting
Computer Language(s), tools; target computer and O/S --describe absolutely everything you are going to use hardware, software(operating system, modules etc)
there are many web database technologies--extreme detail is needed here

Recommendation

Which alternative do you recommend?
Why did this option seem best?
Be sure to demonstrate the feasibility of your recommendation

Development Plan

Project planning

Dates for major tasks, milestones
Gantt chart is a good way to present this (if using Ms Project) otherwise provide a chart with taskid, task description, length, startdate, enddate

document 3-- analysis and design -- modularisation ---60 marks---Jan 12

Use ALL the same steps as outlined on the modularisation handout.

Forms - List all the forms that you think your project will need with a brief description of each form.

Database Description - If the project involves the use of databases, list all database tables your project will use and include a brief description of each table. Be sure that you are capable of including the table(s) or a portion of them with your project for testing your project. You will need to create Access JET sample data for your project.

example

NORMALIZATION
Ward                       Patient
*Ward number               * Patient Number
Ward manager               Patient surname
Ward name                  Patient first names
Route Number               @Ward Number
                           @Doctor Identifier

Doctor                     Prescription
*Doctor Identifier         *Prescription number
Doctor Surname             @Doctor Identifier
Doctor first names         @Patient Number
etc                        Date Issued

Drug Catalogue             Label (prescription/Drug
*Drug code                 Items)
Drug name                  *Prescription Number
Drug cost                  *Drug Code
Drug  notes                Dosage
                           Length of treatment
or just show it like this

Travel Agency

A travel agency arranges holidays for customers. Bookings are made directly by customers. When a customer makes an approach, the reservations clerk selects appropriate flight details and hotel details from lists which are regularly updated. The details are entered onto a Provisional Booking file.

The customer must confirm this booking within three days by sending a deposit of 10% of the costs. On receipt of the deposit, Reservations transfer the details from the Provisional Bookings file to the Full Bookings file.

Four weeks before the flight is due, Accounts send an invoice to the customer for the remaining costs. Accounts notify Customer services when the full payment is received, and Customer Services then send tickets and joining instructions to the customer.

Note the existence of data stores for flights and hotels. This implies that the agency keeps some records of its own about these. If details were retrieved from someone else's database using telecommunications then strictly speaking they should be shown as external entities.

There is no control mechanism for prompting customers to confirm the booking, or to chase payments. Business might be lost, and customers might miss their flights accordingly. IT could be used to retrieve such details and to automate the initiation of the reminder procedures.

There is scope for error in transferring the details between the provisional and full bookings files - IT could minimise this.

The system is a little too sequential. If all depts. used a common database, the customer billing could be automated, as could the issue of tickets, etc. Time would be saved and omissions avoided by not having to have information flows between depts.

The customer file provides a valuable marketing database which can be exploited for mailshotting in the future.

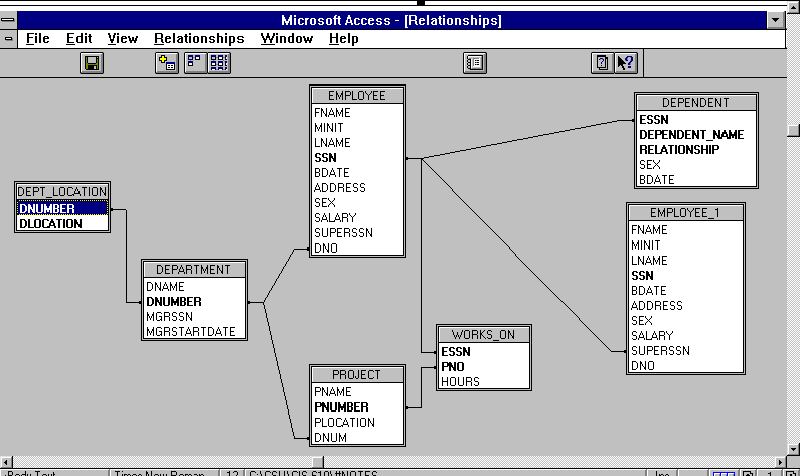

send in ERD, database with data in it.

actual code part 3--the actual working program-- this have is marked in three stages------165 marks---

Consideration will be given to a project that requires learning a lot of new material. All projects must meet the following MINIMUM standards:

Have multiple forms

Use VB prefix conventions for naming control variables

Use at least one code module (.Bas) file

mastery of functions, procedures, arrays, ---Speed Up your Apps with Data Structures----should be evident in the project

In the code windows, use remarks throughout your program to describe what your code is doing

Include an opening "help" form which introduces your project.

error checking routines.

hand-in the program with all the proper files and packaging.

stage 1-basic prototype with some main options working--Jan 17

30 marks

stage 2-near completion with most options-Jan 22 ----105 marks

stage 3-completed Jan 25----ready to hand in-----------------------30 marks

packaged properly
